85KV Outer Rotor Brushless Motor DC
-
-
Gambar besar :

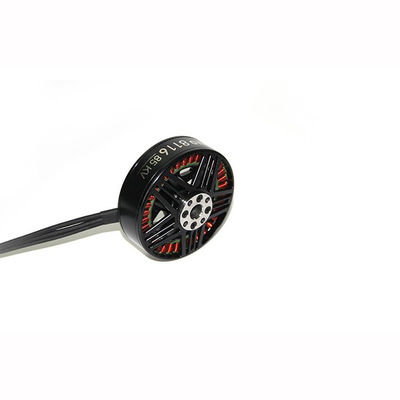

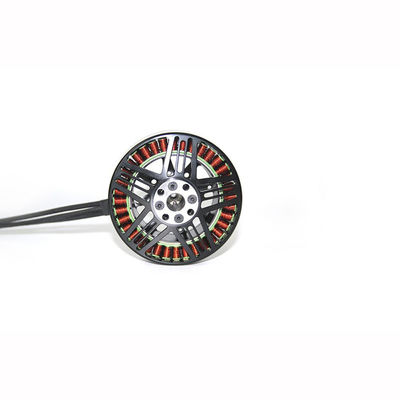

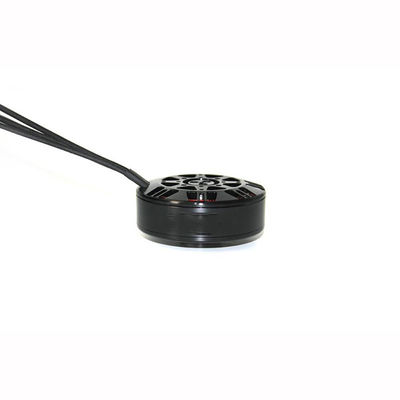

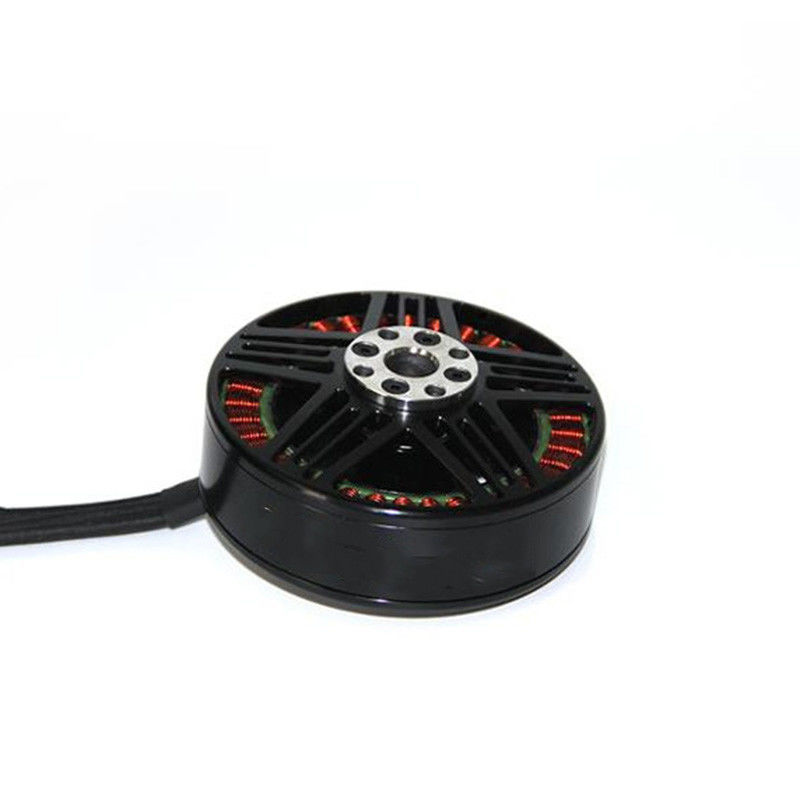

85KV Outer Rotor Brushless Motor DC
|
Detail produk:
| Tempat asal: |
Cina |
| Nama merek: |
OEM |
| Sertifikasi: |
CE/ISO/ROHS |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: |
Dapat dinegosiasikan |
| Harga: |
negotiable |
| Kemasan rincian: |
dengan karton ekspor |
| Waktu pengiriman: |
15-25 hari |
| Syarat-syarat pembayaran: |
L / C, T / T, Western Union, Paypal |
| Menyediakan kemampuan: |
25000 pc / bulan |
|
Detil Deskripsi produk
| Pemakaian: |
Perahu, Kipas, Peralatan Rumah Tangga |
Torsi: |
5,87 N * m |
| Kecepatan (RPM): |
3436 |
Arus terus menerus (a): |
1.1 A |
| Efisiensi: |
IE 3 |
Konfigurasi: |
36N40P |
| Bantalan: |
EZO Stainless Steel |
Arus Maksimum: |
41.3 A |
| Dorongan Maksimal: |
12400g (12S) |
Efisiensi pada 3500 g Dorong: |
10,5 g / W |
| Berat Motor: |
450 g |
| Menyoroti: |
Motor DC Brushless Rotor Luar Tahan Air, Motor DC Brushless Rotor Luar 15mm, Motor Rotor Brushless Luar 85KV |
85KV Outer Rotor Brushless Motor DC
Fitur utama
- Berat motor berkurang
- Desain bodi terbuka untuk pembuangan panas pasif yang lebih baik
- Kompatibilitas untuk pemasangan baling-baling
- Lubang pemasangan motor standarisasi
- Diperbaiki
- Kinerja yang dimaksimalkan
- Konsumsi daya rendah
- Dirancang untuk tegangan 12S
Spesifikasi
|
RPM / V
|
85KV
|
|
Konfigurasi
|
36N40P
|
|
Ukuran Stator
|
81x16 mm
|
|
Dimensi Motor
|
88,6 x 33 mm
|
|
Diameter poros
|
15 mm
|
|
Arus Maksimum
|
41.3 A
|
|
Berat Motor
|
450 g
|
|
Berat Kotak Produk
|
650 g
|
|
Dorongan Maksimal
|
12400g (12S)
|
|
Efisiensi pada 3500 g Dorong
|
10,5 g / W
|
|
Disipasi panas
|
Pasif
|
|
Rotor Seimbang
|
Iya
|
|
Desain Tugas Berat
|
Tidak
|
|
Tingkat Perlindungan
|
Tahan air
|
|
Lubang Pemasangan Baling-Baling
|
4xM3 Ø20 mm
|
|
Lubang Pemasangan Motor
|
4xM3 Ø30 / Ø50mm 4xM4 Ø32mm
|
|
Kawat
|
Winding Diperpanjang 150 mm
|
|
Propeller Adapter
|
1 pc
|
|
Aksesori tambahan
|
3x Bullet Connector Set 3x Heat Shrink Tubes
4x M3 10mm 4x M4 10mm 4x M3 14mm
2x Carbon Prop Cover 1 x Stiker MAD
|
|
REKOMENDASI
|
|
MAD 8116 EEE
|
85KV
|
100KV
|
|
Ukuran baling-baling
|
29 "-32" (12S)
|
26 "-29" (12S)
|
|
Berat lepas landas
|
4000-6000 g / rotor (12S)
|
3500-5000 g / rotor (12S)
|
Parameter uji
|
Motor
|
Menopang
|
Volts
(V)
|
Mencekik
|
Amps (A)
|
Dorongan (g)
|
RPM
|
Watts (W)
|
Efisiensi (g / w)
|
Torsi (N * M)
|
Suhu (° C)
|
|
MAD8116
85KV
|
30105
|
40
|
10%
|
2.5
|
1400
|
1332
|
100
|
14. 00
|
0. 72
|
40 ° C
|
|
20%
|
5
|
2410
|
1704
|
200
|
12. 05
|
1. 12
|
|
30%
|
7.5
|
3380
|
1987
|
300
|
11. 27
|
1. 44
|
|
40%
|
10
|
4040
|
2182
|
400
|
10. 10
|
1. 75
|
|
50%
|
12.5
|
4830
|
2360
|
500
|
9. 66
|
2. 02
|
|
60%
|
15
|
5400
|
2504
|
600
|
9. 00
|
2. 29
|
|
70%
|
17.5
|
6060
|
2641
|
700
|
8. 66
|
2. 53
|
|
80%
|
20
|
6830
|
2781
|
800
|
8. 54
|
2. 75
|
|
90%
|
22.5
|
7200
|
2871
|
900
|
8. 00
|
2. 99
|
|
100%
|
25
|
7860
|
2967
|
1000
|
7. 86
|
3. 22
|
|
30105
|
48
|
10%
|
3.4
|
2000
|
1570
|
163.2
|
12. 25
|
0. 99
|
52 ° C
|
|
20%
|
6.8
|
3430
|
2017
|
326.4
|
10.51
|
1. 55
|
|
30%
|
10.2
|
4620
|
2322
|
489.6
|
9. 44
|
2.01
|
|
40%
|
13.6
|
5690
|
2560
|
652.8
|
8. 72
|
2. 44
|
|
50%
|
17
|
6720
|
2771
|
816
|
8. 24
|
2.81
|
|
60%
|
20.4
|
7620
|
2942
|
979.2
|
7. 78
|
3. 18
|
|
70%
|
23.8
|
8450
|
3083
|
1142.4
|
7. 40
|
3. 54
|
|
80%
|
27.2
|
9230
|
3227
|
1305. 6
|
7. 07
|
3. 86
|
|
90%
|
30.6
|
10090
|
3350
|
1468. 8
|
6. 87
|
4. 19
|
|
100%
|
33.4
|
10660
|
3436
|
1603. 2
|
6. 65
|
4. 46
|
|
32105
|
40
|
10%
|
3
|
1410
|
1261
|
120
|
11. 75
|
0,91
|
46 ° C
|
|
20%
|
6
|
2760
|
1663
|
240
|
11. 50
|
1. 38
|
|
30%
|
9
|
3700
|
1900
|
360
|
10. 28
|
1.81
|
|
40%
|
12
|
4650
|
2098
|
480
|
9. 69
|
2. 18
|
|
50%
|
15
|
5580
|
2278
|
600
|
9. 30
|
2. 52
|
|
60%
|
18
|
6300
|
2414
|
720
|
8. 75
|
2. 85
|
|
70%
|
21
|
7020
|
2528
|
840
|
8. 36
|
3. 17
|
|
80%
|
24
|
7720
|
2640
|
960
|
8. 04
|
3. 47
|
|
90%
|
27
|
8300
|
2745
|
1080
|
7. 69
|
3. 76
|
|
100%
|
30.4
|
9230
|
2853
|
1216
|
7. 59
|
4. 07
|
|
32105
|
48
|
10%
|
4.2
|
2280
|
1533
|
201.6
|
11.31
|
1. 26
|
67 ° C
|
|
20%
|
8.4
|
4040
|
1933
|
403.2
|
10. 02
|
1. 99
|
|
30%
|
12.6
|
5400
|
2245
|
604.8
|
8. 93
|
2. 57
|
|
40%
|
16.8
|
6730
|
2482
|
806.4
|
8. 35
|
3. 10
|
|
50%
|
21
|
8000
|
2676
|
1008
|
7. 94
|
3. 60
|
|
60%
|
25.2
|
8970
|
2837
|
1209-6
|
7. 42
|
4. 07
|
|
70%
|
29.4
|
9960
|
2981
|
1411.2
|
7. 06
|
4. 52
|
|
80%
|
33.6
|
10800
|
3107
|
1612.8
|
6. 70
|
4. 96
|
|
90%
|
37.8
|
11520
|
3206
|
1814.4
|
6. 35
|
5. 40
|
|
100%
|
41.3
|
12400
|
3274
|
1982. 4
|
6. 26
|
5. 78
|
