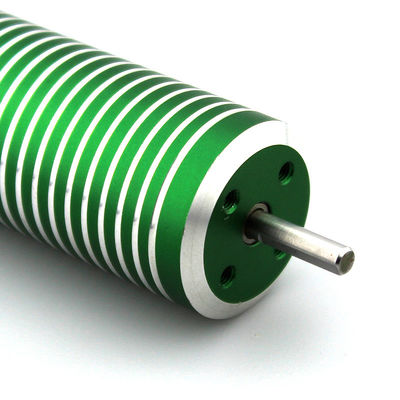

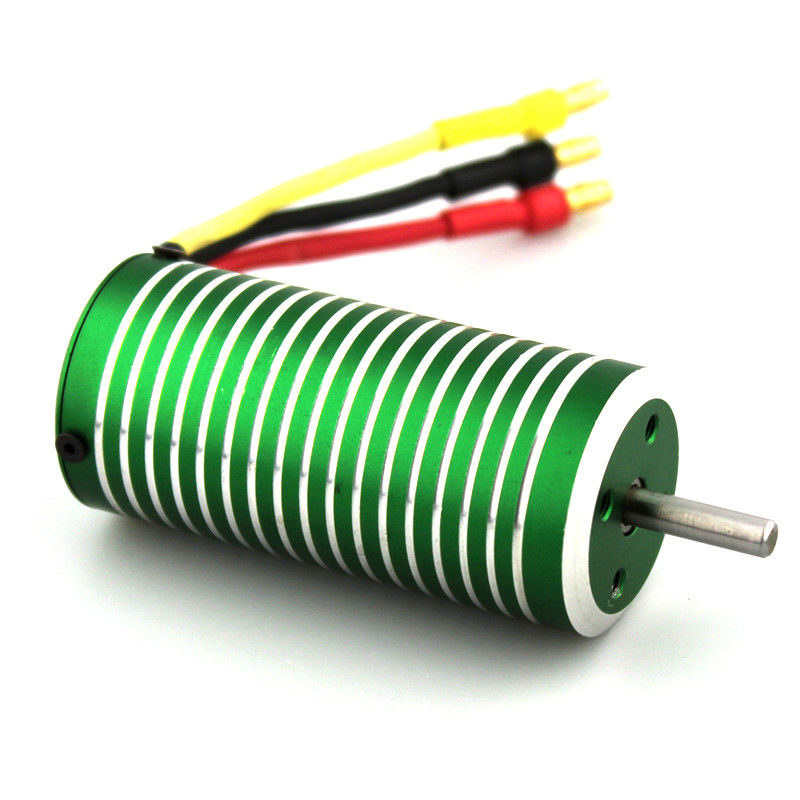

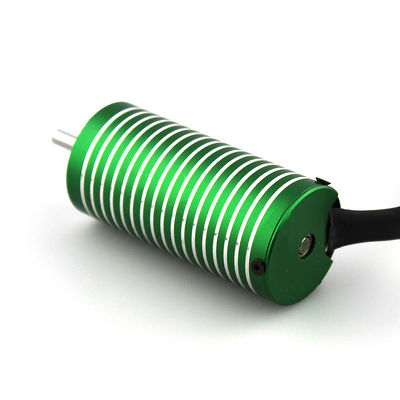

1300W Sensorless 4 Polandia Inrunner Brushless Motor DC
Fitur:
• Tuning tuming yang tepat.
• Casing aluminium CNC berkualitas tinggi, memastikan aliran udara ringan dan optimal.
• RPM tinggi, bantalan bola presisi (bantalan NMB, impor dari Jepang)
• Resistansi Rendah, Daya Tinggi, tab solder berlapis perak.
• Luka tangan untuk pengisian tembaga maksimum, belitan tembaga Kemurnian Tinggi memastikan konduktivitas maksimal.
• Rotor presisi-seimbang akan meningkatkan efisiensi dan kinerja daya motor.
• Rotor neodymium sintered berlapis nikel untuk akselerasi motor maksimum, tenaga pengereman, dan kinerja dalam kondisi suhu tinggi.
Parameter Produk
Tersedia untuk: calss kendaraan skala 380-1 / 12 atau 1/10
Untuk 1/10 Buggy 1/10 Monster atau 400mm-550mm boat, 68mm EDF
Jumlah slot stator: 12G 4P
Peka atau tanpa sensor: tanpa sensor
Diameter poros: 3.175mm-5mm
Ukuran motor: Diameter 28 / Panjang 45mm
Diameter Stator: 26.5mm
Tersedia belitan: Delta / Bintang
Model |
Max Amps |
Tegangan Maks |
Kekuatan penuh |
KV
(RPM / V) |
Kedalaman lubang pemasangan |
Sekrup pemasangan |
Diameter poros |
Panjang Poros |
Diameter ×
Panjangnya
|
Steker |
Bobot |
| RT-2860 / 2D |
120A |
11V |
1300W |
5050KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 2.5D |
85A |
14V |
1300W |
4050KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 3D |
80A |
17V |
1300W |
3400KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 3.5D |
65A |
20V |
1300W |
2910KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 2Y |
60A |
21V |
1300W |
2730KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 4D |
58A |
23V |
1300W |
2550KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 4.5D |
50A |
26V |
1300W |
2260KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 2.5Y |
45A |
27V |
1300W |
2190KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 5D |
47A |
29V |
1300W |
2040KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 3Y |
40A |
32V |
1300W |
1840KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 6D |
38A |
35V |
1300W |
1690KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 3.5Y |
34A |
37V |
1300W |
1580KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 4Y |
30A |
43V |
1300W |
1380KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 4.5Y |
26A |
48V |
1300W |
1230KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
| RT-2860 / 5Y |
24A |
54V |
1300W |
1100KV |
5mm |
Φ17 M3 * 4 |
4mm |
12mm |
Φ28 × 60mm |
3.5mm |
176g |
